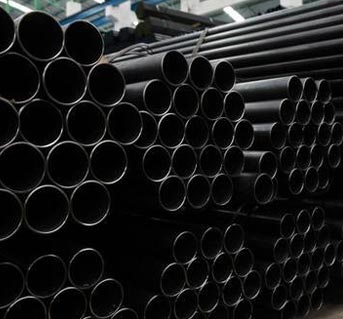

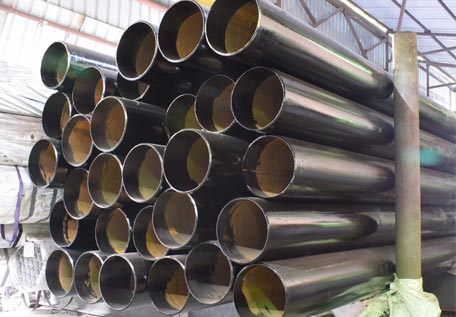

Black Pipes/ Galvanised Pipes

Black Pipes/Galvanised Pipes STOCKIST and SUPPLIERS in Maharashtra , Chhattisgarh , Kerala , Telangana , Gujarat ,Rajasthan , Madhya Pradesh , Uttar Pradesh , Tamil Nadu ,Kolkata,Karnataka India .We Also Export International China,Canada,Mexico,Japan,Germany,Italy,Brazil,Dubai,Saudi etc.

Mipra Steel is well known as the biggest manufacturer, supplier, and exporter of high-quality industrial products. We are traders and wholesalers of Black Pipes/Galvanised Pipes in different forms and supply our product according to our customer’s demands. We are used various specifications and national and international standards.

Electric Resistance Welded (ERW) Pipes are manufactured from Hot Rolled Coils / Slits. All the incoming coils are verified based on the test certificate received from steel mill for their chemistry and mechanical properties. ERW pipe is cold-formed into a cylindrical shape, not hot-formed. Instead of flame, electric current is used for heating edges of the strip for weld fusion. This welding process does not need any filler metal. Instead, the welding pressure causes some of the metal to be squeezed from the joint, forming a bead of metal on inside and outside of the tube. This bead or welding flash is trimmed or completely removed during the process.
During production, online visual inspection is also carried out for surface defects, diameter accuracy, ovality and weld bead shape. Required sample rings as per specification are cut to carry out mechanical testing of weld and body e.g. flattening test, bend test etc. All pipes are then processed in finishing and testing area for pipe end preparation i.e. Facing/Bevelling followed by hydrostatic pressure testing as per specification.
Individual pipe is then visually inspected for the parameters specified in the specification before offering to the customer's inspection, if any. Data of all tests is re-verified and submitted to the customers.

Supply range of ERW Black Pipes:
Pipe Diameter: 1/2" to 20"
Thickness: 2 mm to 12mm
Length: As per customer's requirement (Maximum upto 12 meters)
Capacity: For Black Pipes: 72000 MT / Annum
**ZBIL can supply above ERW Pipes in Bare/Mill Finish, Light Oiled & Lacquered or Black Painted.

ASTM A 53 GRADE A & B (BLACK & GALVANISED PIPES)
Nominal Bore		Outside Diameter		Schedule	Wall Thickness	Weight Of Black Pipes Plain End
mm	inch	mm	inch		mm	kg/mtr
15	1-2	21.3	0.84	40	2.77	1.27
20	3-4	26.7	1.05	40	2.87	1.69
25	1	33.4	1.315	40	3.38	2.5
32	1 1/4	42.2	1.66	40	3.56	3.39
40	1 1/2	48.3	1.9	40	3.68	4.05
50	2	60.3	2.375	40	3.91	5.44
65	2 1/2	73	2.875	40	5.16	8.63
80	3	88.9	3.5	40	5.49	11.29
90	3 1/2	101.6	4	40	5.74	13.75
100	4	114.3	4.5	40	6.02	16.07
125	5	141.3	5.56	40	6.55	21.77
150	6	168.3	6.625	40	7.11	28.26
200	8	219.1	8.625	20	6.35	33.31
200	8	219.1	8.625	30	7.04	36.31
200	8	219.1	8.625	40	8.18	42.55
250	10	273	10.75	20	6.35	41.75
250	10	273	10.75	30	7.8	51.01
250	10	273	10.75	40	9.27	60.29
300	12	323.8	12.75	20	6.35	49.71
300	12	323.8	12.75	30	8.38	65.18
300	12	323.8	12.75	STD.	9.52	73.78
300	12	323.8	12.75	40	10.31	79.7
350	14	355.6	14	10	6.35	54.69
350	14	355.6	14	20	7.92	67.9
350	14	355.6	14	30	9.52	81.25
350	14	355.6	14	40	11.13	94.55
400	16	406.4	16	10	6.35	62.64
400	16	406.4	16	20	7.92	77.83
400	16	406.4	16	30	9.52	93.17
400	16	406.4	16	40	12.7	123.3
400	16	406.4	16	-	11.13	108.49
450	18	457	18	10	6.35	70.6
450	18	457	18	20	7.92	87.75
450	18	457	18	STD.	9.52	105.1
450	18	457	18	-	10.31	113.62
450	18	457	18	30	11.13	122.43
500	20	508	20	10	6.35	78.55
500	20	508	20	20	9.52	117.02
500	20	508	20	-	10.31	126.53
500	20	508	20	-	11.13	136.37

ASTM A-135 GRADE A & B (BLACK & GALVANISED STEEL PIPES)
Nominal Bore		Outside Diameter		SCH 10
				Wall Thickness	Mass & Conversion Factors
mm	inch	mm	inch	mm	kg/mtr
20	3-4	26.7	1.05	2.11	1.28
25	1	33.4	1.315	2.77	2.09
32	1 1/4	42.2	1.66	2.77	2.69
40	1 1/2	48.3	1.9	2.77	3.11
50	2	60.3	2.375	2.77	3.93
65	2 1/2	73	2.875	3.05	5.26
80	3	88.9	3.5	3.05	6.46
90	3 1/2	101.6	4	3.05	7.41
100	4	114.3	4.5	3.05	8.37
125	5	141.3	5.563	3.4	11.58

ASTM A 795 (SCH -10)
SCH 10						SCH 40/30*
Approx OD		Outside Diameter(mm)		Wall Thickness	Weight Plain End	Wall Thickness	Weight Plain End
mm	Inch	mm	Inch	mm	kg/mtr	mm	kg/mtr
20	3-4	26.7	1.05	2.11	1.28	2.87	1.69
25	1	33.4	1.315	2.77	2.09	3.38	2.5
32	1 1/4	42.2	1.66	2.77	2.69	3.56	3.39
40	1 1/2	48.3	1.9	2.77	3.11	3.68	4.05
50	2	60.3	2.375	2.77	3.93	3.91	5.45
65	2 1/2	73	2.875	3.05	5.26	5.16	8.64
80	3	88.9	3.5	3.05	6.46	5.49	11.29
90	3 1/2	101.6	4	3.05	7.41	5.74	13.58
100	4	114.3	4.5	3.05	8.37	6.02	16.09
125	5	141.3	5.563	3.4	11.58	6.55	21.79
150	6	168.3	6.625	3.4	13.85	7.11	28.29
200	8	219.1	8.625	4.78	25.26	7.04	36.82

BS 1387/1985 (BLACK & GALVANISED STEEL PIPES)
ass	Size (N.B)		Outside Diameter		Thickness	Weight To Black Pipes		Weight Of Galvanised Pipes(Calculated)
			MAX	MIN		Plain End	Screwed & Socketed	Plain End	Screwed & Socketed
	mm	Inch	mm	mm	mm	kg/mtr	kg/mtr	kg/mtr	kg/mtr
Light(A)
	15	1-2	21.4	21	2	0.947	0.956	1	1.007
	20	3-4	26.9	26.4	2.3	1.38	1.39	1.44	1.46
	25	1	33.8	33.2	2.6	1.98	2	2.06	2.09
	32	1 1/4	42.5	41.9	2.6	2.54	2.57	2.64	2.68
	40	1 1/2	48.5	47.8	2.9	3.23	3.27	3.35	3.4
	50	2	60.2	59.6	2.9	4.08	4.15	4.22	4.3
	65	2 1/2	76	75.2	3.2	5.71	5.83	5.89	6.02
	80	3	88.7	87.9	3.2	6.72	6.89	6.93	7.1
	100	4	113.9	113	3.6	9.75	10	10.03	10.28
Medium(B)
	15	1-2	21.7	21.1	2.6	1.21	1.22	1.25	1.26
	20	3-4	27.2	26.6	2.6	1.56	1.57	1.62	1.64
	25	1	34.2	33.4	3.2	2.41	2.43	2.49	2.51
	32	1 1/4	42.9	42.1	3.2	3.1	3.13	3.2	3.23
	40	1 1/2	48.8	48	3.2	3.57	3.61	3.68	3.72
	50	2	60.8	59.8	3.6	5.03	5.1	5.17	5.25
	65	2 1/2	76.6	75.4	3.6	6.43	6.55	6.61	6.73
	80	3	89.5	88.1	4	8.37	8.54	8.58	8.76
	100	4	114.9	113.3	4.5	12.2	12.5	12.48	12.69
	125	5	140.6	138.7	5	16.6	17.1	16.94	17.44
	150	6	166.1	164.1	5	19.7	20.3	20.1	20.71
Heavy(C)
	15	1-2	21.7	21.1	3.2	1.44	1.45	1.49	1.5
	20	3-4	27.2	26.6	3.2	1.87	1.88	1.93	1.95
	25	1	34.2	33.4	4	2.94	2.96	3.01	3.04
	32	1 1/4	42.9	42.1	4	3.8	3.83	3.9	3.93
	40	1 1/2	48.8	48	4	4.38	4.42	4.49	4.53
	50	2	60.8	59.8	4.5	6.19	6.26	6.33	6.4
	65	2 1/2	76.6	75.4	4.5	7.93	8.05	8.11	8.23
	80	3	89.5	88.1	5	10.3	10.5	10.51	10.71
	100	4	114.9	113.3	5.4	14.5	14.8	14.77	14.99
	125	5	140.6	138.7	5.4	17.9	18.4	18.21	18.63
	150	6	166.1	164.1	5.4	21.3	21.9	21.68	22.22

BS EXTRA LIGHT(ISO LIGHT)
Nominal Bore		Outside Diameter	Wall Thickness	Mass & Conversion Factors
mm	inch	mm	mm	kg/mtr
15	1-2	21.3	1.8	0.865
20	3-4	26.7	2.1	1.273
25	1	33.4	2.3	1.763
32	1 1/4	42.4	2.3	2.263
40	1 1/2	48.3	2.5	2.823
50	2	60.3	2.6	3.699
65	2 1/2	76	2.9	5.013
80	3	88.9	2.9	6.15
100	4	114.3	3.2	8.767
150	6	165	4.5	18.177

EN 10255 - 2007
Heavy Series
Size		OD (mm)	Std Thick(mm)	Std Plain End	Std S&S
NB	Inch			kg/m	kg/m
15	02-Jan	21.3	3.2	1.44	1.45
20	04-Mar	26.9	3.2	1.87	1.88
25	1	33.7	4	2.93	2.95
32	1.1/4	42.4	4	3.79	3.82
40	1.1/2	48.3	4	4.37	4.41
50	2	60.3	4.5	6.19	6.26
65	2.1/2	76.1	4.5	7.93	8.05
80	3	88.9	5	10.3	10.5
100	4	114.3	5.4	14.5	14.8
125	5	139.7	5.4	17.9	18.4
150	6	165.1	5.4	21.3	21.9
Medium Series
Size		OD (mm)	Std Thick(mm)	Std Plain End	Std S&S
NB	Inch			kg/m	kg/m
15	02-Jan	21.3	2.6	1.21	1.22
20	04-Mar	26.9	2.6	1.56	1.57
25	1	33.7	3.2	2.41	2.43
32	1.1/4	42.4	3.2	3.1	3.13
40	1.1/2	48.3	3.2	3.56	3.6
50	2	60.3	3.6	5.03	5.1
65	2.1/2	76.1	3.6	6.42	6.54
80	3	88.9	4	8.36	8.53
100	4	114.3	4.5	12.2	12.5
125	5	139.7	5	16.6	17.1
150	6	165.1	5	19.8	20.4
Type - L
Size		OD (mm)	Std Thick(mm)	Std Plain End	Std S&S
NB	Inch			kg/m	kg/m
15	02-Jan	21.3	2.3	1.08	1.09
20	04-Mar	26.9	2.3	1.4	1.41
25	1	33.7	2.9	2.2	2.22
32	1.1/4	42.4	2.9	2.82	2.85
40	1.1/2	48.3	2.9	3.25	3.29
50	2	60.3	3.2	4.51	4.58
65	2.1/2	76.1	3.2	5.75	5.87
80	3	88.9	3.2	6.76	6.93
90	3.1/2	101.6	3.6	8.7	8.88
100	4	114.3	3.6	9.83	10.1
125	5	139.7	4.5	15	15.5
150	6	165.1	4.5	17.8	18.4
Type - L1
Size		OD (mm)	Std Thick(mm)	Std Plain End	Std S&S
NB	Inch			kg/m	kg/m
15	02-Jan	21.3	2.3	1.08	1.09
20	04-Mar	26.9	2.3	1.39	1.4
25	1	33.7	2.9	2.2	2.22
32	1.1/4	42.4	2.9	2.82	2.85
40	1.1/2	48.3	2.9	3.24	3.28
50	2	60.3	3.2	4.49	4.56
65	2.1/2	76.1	3.2	5.73	5.85
80	3	88.9	3.6	7.55	7.72
100	4	114.3	4	10.8	11.1
Type - L2
Size		OD (mm)	Std Thick(mm)	Std Plain End	Std S&S
NB	Inch			kg/m	kg/m
15	02-Jan	21.3	2	0.947	0.956
20	04-Mar	26.9	2.3	1.38	1.39
25	1	33.7	2.6	1.98	2
32	1.1/4	42.4	2.6	2.54	2.57
40	1.1/2	48.3	2.9	3.23	3.27
50	2	60.3	2.9	4.08	4.15
65	2.1/2	76.1	3.2	5.71	5.83
80	3	88.9	3.2	6.72	6.89
100	4	114.3	3.6	9.75	10

EN 39:2001 (BLACK & GALVANISED STEEL PIPES FOR SCAFFOLDING)
Size Outside Diameter	Wall Thickness	Nominal Mass Black Plain End	Meters/Tonne Black Plain End	Feet/Tonne Black Plain End	No.of PCS Per Bundle
mm	mm	kg/mtr	meters	feet
48.3	4	4.37	229	751	37
48.3	3.2	3.56	281	922	46

LOW THICKNESS
BS Light
Nominal Bore		Fence Industry	Outside Diameter		Wall Thickness	Weight Black Pipes Plain Ended
mm	Inch	OD	mm	Inch	mm	kg/mtr
25	1	1.3/8	33.4	1.315	2.64	2
32	1 1/4	1.5/8	42.2	1.66	2.64	2.58
40	1 1/2	1.7/8	48.3	1.9	2.95	3.3
50	2	2.3/8	60.3	2.375	2.95	4.17
65	2 1/2	2.7/8	73	2.875	3.25	5.59
0.095
Nominal Bore		Fence Industry	Outside Diameter		Wall Thickness	Weight Black Pipes Plain Ended
mm	Inch	OD	mm	Inch	mm	kg/mtr
25	1	1.3/8	33.4	1.315	2.41	1.84
32	1 1/4	1.5/8	42.2	1.66	2.41	2.36
40	1 1/2	1.7/8	48.3	1.9	2.41	2.73
50	2	2.3/8	60.3	2.375	2.41	3.44
65	2 1/2	2.7/8	73	2.875	2.41	4.2
0.09
Nominal Bore		Fence Industry	Outside Diameter		Wall Thickness	Weight Black Pipes Plain Ended
mm	Inch	OD	mm	Inch	mm	kg/mtr
25	1	1.3/8	33.4	1.315	2.286	1.752
32	1 1/4	1.5/8	42.2	1.66	2.286	2.246
40	1 1/2	1.7/8	48.3	1.9	2.286	2.589
50	2	2.3/8	60.3	2.375	2.286	3.269
65	2 1/2	2.7/8	73	2.875	2.286	3.984
0.085
Nominal Bore		Fence Industry	Outside Diameter		Wall Thickness	Weight Black Pipes Plain Ended
mm	Inch	OD	mm	Inch	mm	kg/mtr
25	1	1.3/8	33.4	1.315	2.16	1.66
32	1 1/4	1.5/8	42.2	1.66	2.16	2.13
40	1 1/2	1.7/8	48.3	1.9	2.16	2.46
50	2	2.3/8	60.3	2.375	2.16	3.1
0.08
Nominal Bore		Fence Industry	Outside Diameter		Wall Thickness	Weight Black Pipes Plain Ended
mm	Inch	OD	mm	Inch	mm	kg/mtr
25	1	1.3/8	33.4	1.315	2.03	1.57
32	1 1/4	1.5/8	42.2	1.66	2.03	2.01
40	1 1/2	1.7/8	48.3	1.9	2.03	2.32
50	2	2.3/8	60.3	2.375	2.03	2.92
0.079
Nominal Bore		Fence Industry	Outside Diameter		Wall Thickness	Weight Black Pipes Plain Ended
mm	Inch	OD	mm	Inch	mm	kg/mtr
25	1	1.3/8	33.4	1.315	2.007	1.552
32	1 1/4	1.5/8	42.2	1.66	2.007	1.985
40	1 1/2	1.7/8	48.3	1.9	2.007	2.286
50	2	2.3/8	60.3	2.375	2.007	2.883
65	2 1/2	2.7/8	73	2.875	2.007	3.511
0.065
Nominal Bore		Fence Industry	Outside Diameter		Wall Thickness	Weight Black Pipes Plain Ended
mm	Inch	OD	mm	Inch	mm	kg/mtr
25	1	1.3/8	33.4	1.315	1.65	1.29
32	1 1/4	1.5/8	42.2	1.66	1.65	1.65
40	1 1/2	1.7/8	48.3	1.9	1.65	1.9
50	2	2.3/8	60.3	2.375	1.65	2.39

BLACK & GALVANISING STEEL PIPES CONFORMING TO IS 1239
Class	Size (N.B)		Approx. OD		Thickness	Nominal Weight Of Black Pipes		Calculated Nominal Weight Of Galvanising Pipes
						Plain Ended	Screwed & Socketed	Plain Ended	Screwed & Socketed
	mm	Inch	mm	Inch	mm	kgs/m	kgs/m	kgs/m	kgs/m
Light(A)
	15	02-Jan	21.3	0.843	2	0.947	0.956	1	1.007
	20	04-Mar	26.9	1.062	2.3	1.38	1.39	1.44	1.46
	25	1	33.7	1.328	2.6	1.98	2	2.06	2.09
	32	1 1/4	42.4	1.682	2.6	2.54	2.57	2.64	2.68
	40	1 1/2	48.3	1.906	2.9	3.23	3.27	3.35	3.4
	50	2	60.3	2.375	2.9	4.08	4.15	4.22	4.3
	65	2 1/2	76.1	3	3.2	5.71	5.83	5.89	6.02
	80	3	88.9	3.5	3.2	6.72	6.89	6.93	7.1
	100	4	114.3	4.5	3.6	9.75	10	10.03	10.28
Medium(B)
	15	02-Jan	21.3	0.843	2.6	1.21	1.22	1.25	1.26
	20	04-Mar	26.9	1.062	2.6	1.56	1.57	1.62	1.64
	25	1	33.7	1.328	3.2	2.41	2.43	2.49	2.51
	32	1 1/4	42.4	1.682	3.2	3.1	3.13	3.2	3.23
	40	1 1/2	48.3	1.906	3.2	3.56	3.6	3.68	3.73
	50	2	60.3	2.375	3.6	5.03	5.1	5.17	5.25
	65	2 1/2	76.1	3	3.6	6.42	6.54	6.6	6.72
	80	3	88.9	3.5	4	8.36	8.53	8.57	8.74
	100	4	114.3	4.5	4.5	12.2	12.5	12.43	12.69
	125	5	139.7	5.5	4.8	15.9	16.4	16.3	16.71
	150	6	165.1	6.5	4.8	18.9	19.5	19.39	19.92
Heavy(C)
	15	02-Jan	21.3	0.843	3.2	1.44	1.45	1.48	1.49
	20	04-Mar	26.9	1.062	3.2	1.87	1.88	1.93	1.95
	25	1	33.7	1.328	4	2.93	2.95	3.01	3.04
	32	1 1/4	42.4	1.682	4	3.79	3.82	3.89	3.93
	40	1 1/2	48.3	1.906	4	4.37	4.41	4.49	4.54
	50	2	60.3	2.375	4.5	6.19	6.26	6.33	6.4
	65	2 1/2	76.1	3	4.5	7.93	8.05	8.11	8.23
	80	3	88.9	3.5	4.8	9.9	10.4	10.15	10.31
	100	4	114.3	4.5	5.4	14.5	14.8	14.74	14.99
	125	5	139.7	5.5	5.4	17.9	18.4	18.21	18.63
	150	6	165.1	6.5	5.4	21.3	21.9	21.68	22.22

IS 1161 : 2014
Size (N.B)		Approx OD(mm)	Outside Diameter mm			Thickness	Std. Black Kg/m	Galv Plain End Kg/m
mm	Inch		Min	Max	Mean	mm	Kg	Kg
20	04-Mar	26.9	26.1	27.3	26.7	2.3	1.4	1.462
20	04-Mar	26.9	26.1	27.3	26.7	2.6	1.56	1.621
20	04-Mar	26.9	26.1	27.3	26.7	3.2	1.87	1.93
25	1	33.7	32.9	34.1	33.5	2.6	1.99	2.068
25	1	33.7	32.9	34.1	33.5	3.2	2.41	2.487
25	1	33.7	32.9	34.1	33.5	4	2.93	3.005
32	1.1/4	42.4	41.6	42.8	42.2	2.6	2.55	2.65
32	1.1/4	42.4	41.6	42.8	42.2	3.2	3.09	3.188
32	1.1/4	42.4	41.6	42.8	42.2	4	3.79	3.887
40	1.1/2	48.3	47.5	48.7	48.1	2.9	3.25	3.364
40	1.1/2	48.3	47.5	48.7	48.1	3.2	3.56	3.673
40	1.1/2	48.3	47.5	48.7	48.1	4	4.37	4.481
50	2	60.3	59.69	60.9	60.3	2.9	4.11	4.254
50	2	60.3	59.69	60.9	60.3	3.6	5.03	5.172
50	2	60.3	59.69	60.9	60.3	4.5	6.19	6.33
65	2.1/2	76.1	75.34	76.86	76.1	2.9	5.24	5.424
65	2.1/2	76.1	75.34	76.86	76.1	3.6	6.44	6.622
65	2.1/2	76.1	75.34	76.86	76.1	4.5	7.95	8.13
80	3	88.9	88.01	89.78	88.9	3.2	6.76	6.975
80	3	88.9	88.01	89.78	88.9	4	8.38	8.593
80	3	88.9	88.01	89.78	88.9	4.8	9.96	10.171
90	3.1/2	101.6	100.58	102.62	101.6	3.6	8.7	8.946
90	3.1/2	101.6	100.58	102.62	101.6	4	9.63	9.875
90	3.1/2	101.6	100.58	102.62	101.6	4.8	11.46	11.703
100	4	114.3	113.15	115.44	114.3	3.6	9.83	10.108
100	4	114.3	113.15	115.44	114.3	4.5	12.19	12.466
100	4	114.3	113.15	115.44	114.3	5.4	14.5	14.774
125	5	139.7	138.3	141.09	139.7	4.5	15	15.34
125	5	139.7	138.3	141.09	139.7	4.8	15.97	16.309
125	5	139.7	138.3	141.09	139.7	5.4	17.89	18.228
150	6	165.1	163.44	166.75	165.1	4.5	17.82	18.224
150	6	165.1	163.44	166.75	165.1	4.8	18.98	19.383
150	6	165.1	163.44	166.75	165.1	5.4	21.27	21.671
150	6	165.1	163.44	166.75	165.1	5.9	23.2	23.601
150	6	165.1	163.44	166.75	165.1	6.3	24.67	25.069
150	6	165.1	163.44	166.75	165.1	8	30.99	31.385
200	8	219.1	216.91	221.29	219.1	4.8	25.37	25.909
200	8	219.1	216.91	221.29	219.1	5.6	29.49	30.027
200	8	219.1	216.91	221.29	219.1	5.9	31.02	31.556
200	8	219.1	216.91	221.29	219.1	6.3	33.06	33.595
200	8	219.1	216.91	221.29	219.1	8	41.65	42.181

IS 3601 : 2006
Size (N.B)		Approx OD(mm)	Outside Diameter mm			Thickness	Std. Black Kg/m	Galv Plain End Kg/m
mm	Inch		Min	Max	Mean	mm	Kg	Kg
20	04-Mar	26.9	25.9	27.4	26.65	1.2	0	0
20	04-Mar	26.9	25.9	27.4	26.65	1.8	1.11	1.173
20	04-Mar	26.9	25.9	27.4	26.65	2	1.23	1.293
20	04-Mar	26.9	25.9	27.4	26.65	2.3	1.4	1.462
20	04-Mar	26.9	25.9	27.4	26.65	2.6	1.56	1.621
20	04-Mar	26.9	25.9	27.4	26.65	3.2	1.87	1.93
20	04-Mar	26.9	25.9	27.4	26.65	4	2.26	2.318
25	1	33.7	32.7	34.2	33.45	2	1.56	1.639
25	1	33.7	32.7	34.2	33.45	2.3	1.78	1.859
25	1	33.7	32.7	34.2	33.45	2.6	1.99	2.068
25	1	33.7	32.7	34.2	33.45	3.2	2.41	2.487
25	1	33.7	32.7	34.2	33.45	4	2.93	3.005
25	1	33.7	32.7	34.2	33.45	4.5	3.24	3.313
32	1.1/4	42.4	41.4	42.9	42.15	2.3	2.27	2.371
32	1.1/4	42.4	41.4	42.9	42.15	2.6	2.55	2.65
32	1.1/4	42.4	41.4	42.9	42.15	3.2	3.09	3.188
32	1.1/4	42.4	41.4	42.9	42.15	3.6	3.44	3.537
32	1.1/4	42.4	41.4	42.9	42.15	4	3.79	3.887
32	1.1/4	42.4	41.4	42.9	42.15	5	4.61	4.704
32	1.1/4	42.4	41.4	42.9	42.15	5.4	4.93	5.023
40	1.1/2	48.3	47.3	48.8	48.05	2.3	2.61	2.726
40	1.1/2	48.3	47.3	48.8	48.05	2.6	2.93	3.045
40	1.1/2	48.3	47.3	48.8	48.05	2.9	3.25	3.364
40	1.1/2	48.3	47.3	48.8	48.05	3.2	3.56	3.673
40	1.1/2	48.3	47.3	48.8	48.05	3.6	3.97	4.082
40	1.1/2	48.3	47.3	48.8	48.05	4	4.37	4.481
40	1.1/2	48.3	47.3	48.8	48.05	4.9	5.24	5.349
40	1.1/2	48.3	47.3	48.8	48.05	5	5.34	5.449
40	1.1/2	48.3	47.3	48.8	48.05	5.6	5.9	6.007
40	1.1/2	48.3	47.3	48.8	48.05	5.9	6.16	6.266
50	2	60.3	59.7	60.9	60.3	2.3	3.29	3.436
50	2	60.3	59.7	60.9	60.3	2.6	3.7	3.845
50	2	60.3	59.7	60.9	60.3	2.9	4.11	4.254
50	2	60.3	59.7	60.9	60.3	3.2	4.51	4.654
50	2	60.3	59.7	60.9	60.3	3.6	5.03	5.172
50	2	60.3	59.7	60.9	60.3	4	5.55	5.691
50	2	60.3	59.7	60.9	60.3	4.5	6.19	6.33
50	2	60.3	59.7	60.9	60.3	5	6.82	6.959
50	2	60.3	59.7	60.9	60.3	5.6	7.55	7.687
50	2	60.3	59.7	60.9	60.3	6.3	8.39	8.526
65	2.1/2	76.1	75.3	76.9	76.1	2.6	4.71	4.895
65	2.1/2	76.1	75.3	76.9	76.1	2.9	5.24	5.424
65	2.1/2	76.1	75.3	76.9	76.1	3.2	5.75	5.933
65	2.1/2	76.1	75.3	76.9	76.1	3.6	6.44	6.622
65	2.1/2	76.1	75.3	76.9	76.1	4.5	7.95	8.13
65	2.1/2	76.1	75.3	76.9	76.1	5	8.77	8.949
65	2.1/2	76.1	75.3	76.9	76.1	5.4	9.42	9.598
65	2.1/2	76.1	75.3	76.9	76.1	6.3	10.8	10.975
65	2.1/2	76.1	75.3	76.9	76.1	7.1	12.1	12.274
80	3	88.9	88	89.8	88.9	2.9	6.15	6.366
80	3	88.9	88	89.8	88.9	3.2	6.76	6.975
80	3	88.9	88	89.8	88.9	4	8.38	8.593
80	3	88.9	88	89.8	88.9	5	10.3	10.51
80	3	88.9	88	89.8	88.9	5.4	11.1	11.309
80	3	88.9	88	89.8	88.9	5.6	11.5	11.709
80	3	88.9	88	89.8	88.9	6.3	12.8	13.007
80	3	88.9	88	89.8	88.9	8	16	16.204
90	3.1/2	101.6	100.6	102.6	101.6	3.6	8.7	8.946
90	3.1/2	101.6	100.6	102.6	101.6	4	9.63	9.875
90	3.1/2	101.6	100.6	102.6	101.6	5	11.9	12.143
100	4	114.3	113.2	115.4	114.3	3.2	8.77	9.049
100	4	114.3	113.2	115.4	114.3	3.6	9.83	10.108
100	4	114.3	113.2	115.4	114.3	4.5	12.2	12.476
100	4	114.3	113.2	115.4	114.3	5.4	14.5	14.774
100	4	114.3	113.2	115.4	114.3	6.3	16.8	17.072
100	4	114.3	113.2	115.4	114.3	8	21	21.267
125	5	139.7	138.3	141.1	139.7	3.6	12.1	12.442
125	5	139.7	138.3	141.1	139.7	4	13.4	13.741
125	5	139.7	138.3	141.1	139.7	4.5	15	15.34
125	5	139.7	138.3	141.1	139.7	5	16.6	16.938
125	5	139.7	138.3	141.1	139.7	5.4	17.9	18.238
125	5	139.7	138.3	141.1	139.7	6.3	20.7	21.035
125	5	139.7	138.3	141.1	139.7	8	26	26.331
150	6	165.1	163.4	166.8	165.1	4.5	17.8	18.203
150	6	165.1	163.4	166.8	165.1	5	19.7	20.101
150	6	165.1	163.4	166.8	165.1	5.4	21.2	21.6
150	6	165.1	163.4	166.8	165.1	6.3	24.8	25.201
200	8	219.1	216.9	221.3	219.1	4.5	23.8	24.339
200	8	219.1	216.9	221.3	219.1	5	26.4	26.938
200	8	219.1	216.9	221.3	219.1	5.6	29.5	30.037
200	8	219.1	216.9	221.3	219.1	6.3	33.1	33.635
200	8	219.1	216.9	221.3	219.1	8	41.6	42.13

BLACK STEEL PIPES CONFIRMING TO IS 3589
Nominal Bore		Outside Diameter		Thickness		Mass & Conversion Factors
mm	inch	mm	inch	mm	inch	Kg/mtr	mtr/ton	ft/tonne
150	6	168.6	6.626	4	0.157	16.21	62	202
150	6	168.3	6.626	4.8	0.189	19.35	52	169
150	6	168.3	6.626	5.4	0.213	21.69	46	151
150	6	168.3	6.526	6	0.236	24.02	42	137
200	8	219.1	8.626	4	0.157	21.22	47	155
200	8	219.1	8.626	4.5	0.177	23.82	42	138
200	8	219.1	8.626	4.85	0.191	25.63	39	128
200	8	219.1	8.626	5	0.197	26.4	38	124
200	8	219.1	8.626	5.4	0.213	28.46	35	115
200	8	219.1	8.626	5.5	0.217	28.97	35	113
200	8	219.1	8.626	6	0.236	31.53	32	104
200	8	219.1	8.626	6.35	0.25	33.32	30	98
200	8	219.1	8.626	7	0.275	36.61	27	90
200	8	219.1	8.626	8.18	0.322	42.55	23	77

BLACK STEEL PIPES FOR IDLERS CONFIRMING TO IS:9295
Outside Diameter	Thickness	Mass
(OD) mm	mm	kg/mtr
76.1	3.65	6.52
76.1	4.5	7.95
88.9	4.05	8.47
88.9	4.85	10.05
88.9	6.3	12.83
101.6	4.05	9.74
101.6	4.85	11.57
101.6	6.3	14.81
114.3	4.5	12.19
114.3	5.4	14.5
114.3	6.3	16.78
139.7	4.5	15
139.7	4.85	16.13
139.7	5.4	17.89
139.7	6.3	20.73
165.1	4.5	17.8
165.1	4.85	19.17
165.1	5.4	21.27
165.1	6.3	24.67
168.3	4.5	18.2
168.3	4.85	19.55
168.3	5.4	21.59
168.3	6.3	25.17
219.1	5.4	28.5
219.1	6.3	33.06
219.1	7.1	37.12
