IS 1239/IS 3589

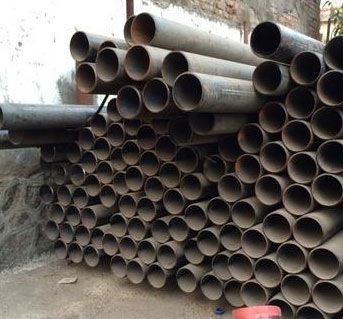

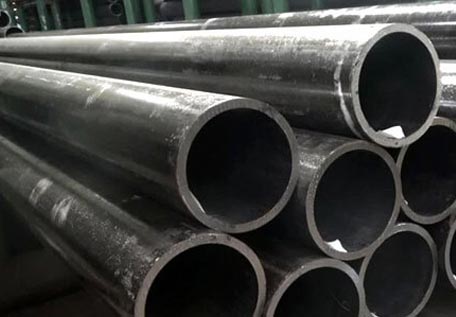

As one of the leading suppliers of IS:1239/IS:3589 steel pipes in Mumbai, Metline Industries (Steel Pipes & Tube Division) stocks an extensive range of electric resistance welded (ERW) IS:1239 steel pipes in a size range of 15mm. N.B. to 150mm N.B. in the Light, Medium and Heavy classes. STOCKIST and SUPPLIERS in Maharashtra , Chhattisgarh , Kerala , Telangana , Gujarat ,Rajasthan , Madhya Pradesh , Uttar Pradesh , Tamil Nadu ,Kolkata,Karnataka India .We Also Export International China,Canada,Mexico,Japan,Germany,Italy,Brazil,Dubai,Saudi etc.

Mipra Steel is well known as the biggest manufacturer, supplier, and exporter of high-quality industrial products. We are traders and wholesalers of IS 1239/IS 3589 in different forms and supply our product according to our customer’s demands. We are used various specifications and national and international standards.

All IS:1239 steel pipes and black tubes supplied by Mipra Steel are produced in accordance with ASTM /IS/BS specifications. At Mipra Steel, we strictly adhere the scheme of Testing and Inspecting laid down by the Bureau of Indian Standards (BIS) – IS:1239 & IS:3589. We can offer mild steel tubes and pipes beveled or plain ended.

Steel Pipes and Tubes Dimensions Confirming to IS: 1239 Class A/Class B/Class C (Part – I) – 2004, Equivalent to BS – 1387 / 1985

Nominal Bore		Outside Diameter		Light (A-Class) Thickness Weight		Medium (B-Class) Thickness Weight		Heavy (C-Class) Thickness Weight
Inch	mm	Inch	mm	mm	kg/mtr	mm	kg/mtr	mm	kg/mtr
1/8″	3 mm	0.406	10.32	1.80	0.361	2.00		2.65	0.493
1/4″	6 mm	0.532	13.49	1.80	0.517	2.35	0.407	2.90	0.769
3/8″	10 mm	0.872	17.10	1.80	0.674	2.35	0.852	2.90	1.02
1/2″	15 mm	0.844	21.43	2.00	0.952	2.65	1.122	3.25	1.45
3/4″	20 mm	1.094	27.20	2.35	1.410	2.65	1.580	3.25	1.90
1″	25 mm	1.312	33.80	2.65	2.010	3.25	2.440	4.05	2.97
1.1/4″	32 mm	1.656	42.90	2.65	2.580	3.25	3.140	4.05	3.84
1.1/2″	40 mm	1.906	48.40	2.90	3.250	3.25	3.610	4.05	4.43
2″	50 mm	2.375	60.30	2.90	4.110	3.65	5.100	4.47	6.17
2.1/2″	65 mm	3.004	76.20	3.25	5.840	3.65	6.610	4.47	7.90
3″	80 mm	3.500	88.90	3.25	6.810	4.05	8.470	4.85	10.1
4″	100 mm	4.500	114.30	3.65	9.890	4.50	12.10	5.40	14.4
5″	125 mm	5.500	139.70	–	–	4.85	16.20	5.40	17.8
6″	150 mm	6.500	165.10	–	–	4.85	19.20	5.40	21.2

Big Diameter Steel Pipes, ERW Pipes Confirming to IS 3589, Grade FE330, Grade FE410

Wall Thickness	NominalBore 7″ NB 193.7 mm OD	NominalBore 8″ NB 219.1 mm OD	NominalBore 10″ NB 273 mm OD	NominalBore 12″ NB 323.7 mm OD	NominalBore 14″ NB 355.6 mm OD	NominalBore 16″ NB 406.4 mm OD	NominalBore 18″ NB 457mm OD	NominalBore 20″ NB 508 mm OD
mm	Kg/mtr	Kg/mtr	Kg/mtr	Kg/mtr	Kg/mtr	Kg/mtr	Kg/mtr	Kg/mtr
4.85	22.59	25.62	32.07	38.13	–	–	–	–
5.20	24.17	27.43	34.34	40.85	–	–	–	–
5.60	26.00	29.28	36.93	43.93	48.11	–	–
6.00	27.88	31.53	39.50	47.02	51.49	61.00	69.00	–
6.35	29.34	33.28	41.73	49.67	54.43	62.35	70.50	78.50
7.01	32.77	36.76	46.43	55.45	61.82	69.04	–	–
7.94	–	41.00	50.95	61.85	67.98	77.94	87.80	–
8.18	–	42.56	53.42	65.12	–	–	–	–
9.53	–	51.50	60.24	73.75	81.21	93.13	105.00	117.00
12.70	–	–	–	–	107.28	123.30	139.00	155.00

Steel Pipes, Steel Tubes Tolerance as per IS:1239

(a) Thickness
1	Butt welded Light tubes	+Not limited – 8 percent
	Medium and Heavy tubes	+Not limited – 10 percent
2	Seamless Tubes	+Not limited – 10 percent

(a) Weight
1	Single tube (light series)	+ 8 percent – 8 percent
2	Single tube (medium & heavy Series)	+ 10 percent

IS:1239 Steel Pipes and Tubes Product, Stock Range

Size: 15mm NB to 150mm NB (1/2” to 6”), 7″ (193.7mm OD to 20″ 508mm OD)

Dimension & Tolerance: Black Steel Pipes Dimensions – IS: 1239 (Pt I) – 2004, Equivalent to BS – 1387 / 1985

Specifications: IS – 1239 (Part -1) 2004, Equivalent to BS – 1387 / 1985

Surface Finish: Black

Features: High Strength, Corrosion Resistant, High Toughness and Deformability

Length: As per customer’s requirement (Maximum upto 7 meters)

Features: High Strength, Corrosion Resistant, High Toughness and Deformability

What are the Applications of IS:1239 Steel Pipes and IS:1239 Steel Tubes?

1. Industrial Water Lines, Plant Piping
2. Agriculture and Irrigation
3. Galvanized Steel Fencings
4. Road Barriers
5. Parking Barriers
6. Temporary Fencings
7. Steel Gates & Windows
8. Road Side Railings
9. Structural and fabrication work
10. Water Pipelines
11. Sewerage Systems
12. Oil Pipe Lines
13. Oil Refinery Piping, Crude Oil Piping
