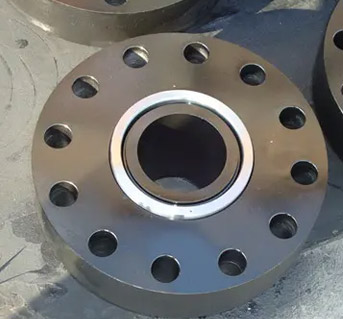

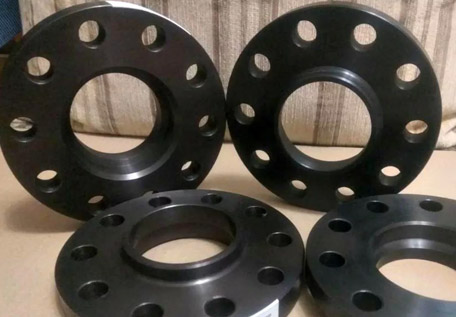

Flanges are pipe fittings that are used to connect pipes or fittings together to perform different functions. They have a raised part so that they could be attached well to the other component either by welding or by bolting. Mild Steel Flanges are common in usage as they provide a medium range of strength and corrosion resistance in a balance. Dinesh Industries is a Mild Steel Flanges manufacturer in India and the production includes various types of MS pipe flange component. There are different types of materials used for different applications. There are also different methodologies producing the flanges. The Cast iron flanges are used in applications that prioritize strength over corrosion resistance.
| Size Range | 1/2″ to 48″ (15 NB) to (1200NB) |
|---|---|
| Common Types | Threaded / Screwed / Forged / Plate |
| Pressure Rating Classes | 300 LBS, 600 LBS, 150 LBS, 2500 LBS, 900 LBS, 1500 LBS |
| Coatings | Zinc Plated, Oil Black Paint, Yellow Transparent, Anti-rust Paint, Cold and Hot Dip Galvanized |
| DIN / JIS / UNI / EN | 16Bar, 6Bar, 25Bar, 40Bar, 10Bar / PN10, PN25, PN64, PN16, PN6, PN40 |
| Equipments | Sand-blasting machine, Press machine, Bending machine, electric bevelling machine, Pushing Machine etc |
| Origin | West Europe / Japan / Indian / USA / Korean |
| Testing | Magnetic particle detector, X-ray detector, UI trasonic flaw detector, Direct-reading Spectrograph, Hydrostatic testing machine |
| Manufacturer of |
ANSI DIN, GOST, UNI, BS, AS2129, JIS, NFE, AWWA, SABS, EN etc. |
| Connect Type/ Flange Face Type | RF, Small Tongue, RTJ, FF, LJF, Large Tongue & Groove |
| Element | Content |
|---|---|
| Phosphorous, P | ≤ 0.040 % |
| Sulfur, S | ≤ 0.050 % |
| Carbon, C | 0.14 – 0.20 % |
| Iron, Fe | 98.81 – 99.26 % (as remainder) |
| Manganese, Mn | 0.60 – 0.90 % |
| Mechanical Properties | Metric | Imperial |
|---|---|---|
| Hardness, Brinell | 126 | 126 |
| Hardness, Knoop (Converted from Brinell hardness) | 145 | 145 |
| Hardness, Rockwell B (Converted from Brinell hardness) | 71 | 71 |
| Tensile Strength, Yield | 370 MPa | 53700 psi |
| Hardness, Vickers (Converted from Brinell hardness) | 131 | 131 |
| Poissons Ratio (Typical For Steel) | 0.290 | 0.290 |
| Machinability (Based on AISI 1212 steel. as 100% machinability) | 70 % | 70 % |
| Bulk Modulus (Typical for steel) | 140 GPa | 20300 ksi |
| Tensile Strength, Ultimate | 440 MPa | 63800 psi |
| Elongation at Break (In 50 mm) | 15.0 % | 15.0 % |
| Reduction of Area | 40.0 % | 40.0 % |
| Modulus of Elasticity (Typical for steel) | 205 GPa | 29700 ksi |
| Shear Modulus (Typical for steel) | 80.0 GPa | 11600 ksi |
